A3 - Introducing Breadboards

In electronics, a breadboard can be used to assemble simple projects. For an introduction, please view this video. We will also be viewing this video together in class.

Your Task

Part 1 - Follow the Current

You will receive a handout illustrating two of the circuits from the video. With a pen (or even better, a marker or highlighter), draw the path of the current from the positive terminal of the battery, through the breadboard and components, back to the negative terminal of the battery. Do this for both circuits on the page.

Part 2 - TinkerCad

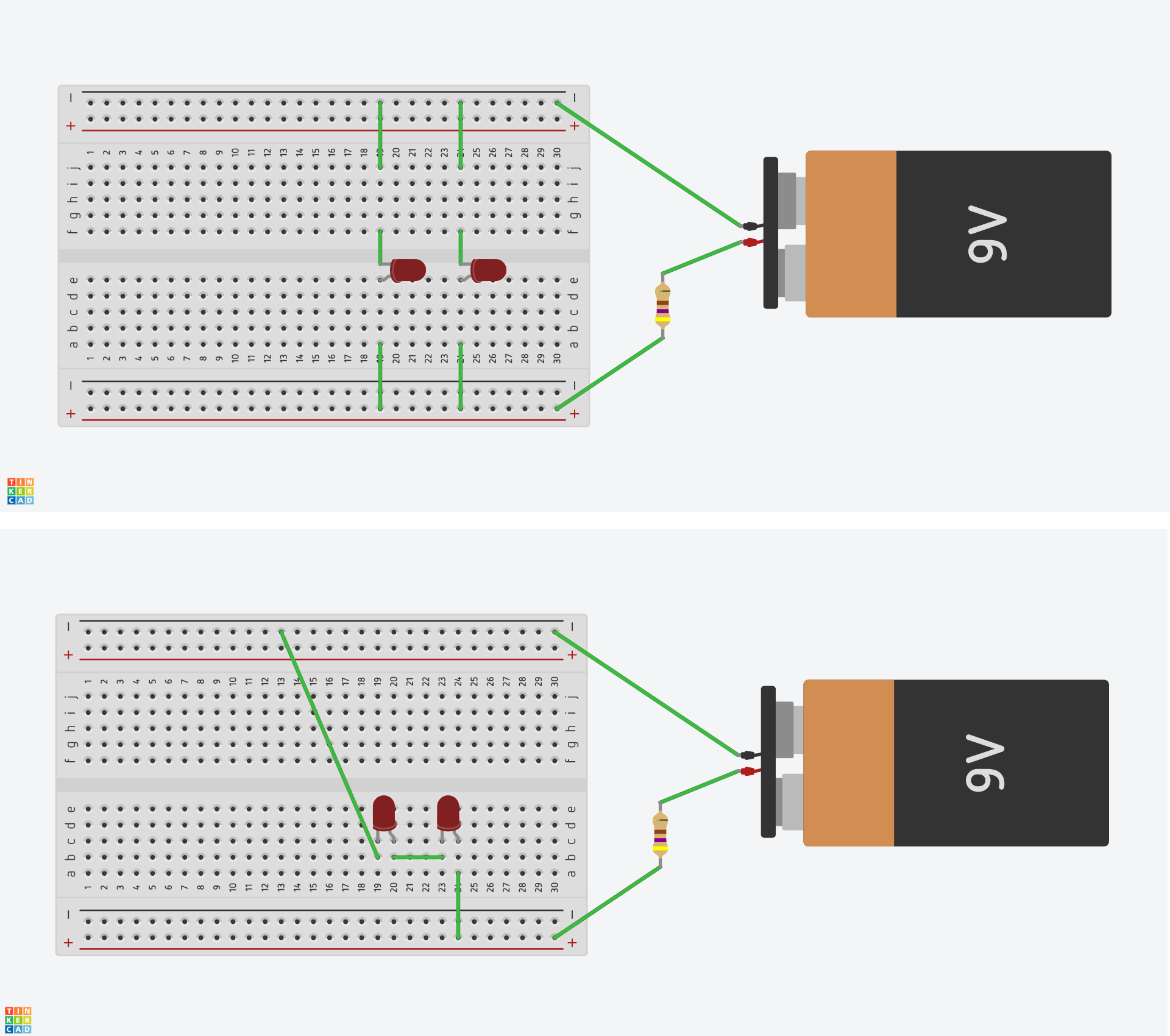

Build both of the circuits from Task #1 in TinkerCad. The diagrams are also below for your reference.
